Adding Support for Pixelcade Empty Adding Support for Pixelcade

Post by pixelcade 03/07/22, 04:35 am

Hey there, i'm the creator of the Pixelcade active marquees http://pixelcade.org and have a couple of requests to add Pixelcade support to Retrobat. As Retrobat is EmulationStation based, I'm wondering if this build of Retrobat supports EmulationStation script events (specifically at the bottom of this page https://retropie.org.uk/docs/EmulationStation/). If so, I can use this hook to add support for Pixelcade. Basically the script will call the Pixelcade API http://pixelcade.org/api whenever a new game is selected or launched. If not, any other hooks I can use to call the API whenever a game is selected and/or launched is what I would need, any guidance would be great, thanks.
pixelcade
pixelcade

Messages : 11
Date d'inscription : 2022-07-03

http://pixelcade.org

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by getupor 03/07/22, 07:27 am

Hello @pixelcade, and welcome here.

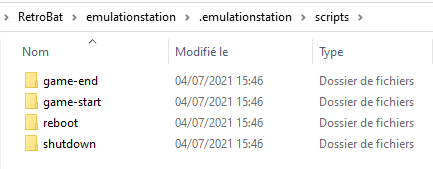

Yes, Retrobat use EmulationStation, the same version that Batocera (the Fabrice Caruso fork).
So the script function works also.

Adding Support for Pixelcade 2022-036


Adding Support for Pixelcade Admin4
getupor
getupor
Admin

Messages : 1422
Date d'inscription : 2020-10-04

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by pixelcade 03/07/22, 07:03 pm

thanks for the quick reply, that is good to know!

a couple of questions:

1. There are two additional script events in the latest Batocera that Pixelcade uses:

game-selected
system-selected

Without those, the Pixelcade marquee can only update when a game is launched vs. with these Pixelcade can also update during game and system scrolling through the EmulationStation front end (before a game is launched).

I'm wondering if those can be added? I know the guy who did the script engine PR there for Batocera and RCade so could ask him to do a PR here if you're open.

2. For EmuELEC, we added an additional mod to RetroArch such that RetroAchievements can trigger Pixelcade too , see here https://youtu.be/kgJjrWW8HBU. If you're open to add this, I can work with the devs there for a PR request assuming you have your own RetroArch fork?
pixelcade
pixelcade

Messages : 11
Date d'inscription : 2022-07-03

http://pixelcade.org

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by f.caruso 03/07/22, 07:38 pm

V5 Events are the same than batocera ( it's the same EmulationStation )
you probably need the "game-selected" event. Parameters are <systemname> <gamepath> <gamename>


Adding Support for Pixelcade Admin4
f.caruso
f.caruso
Admin

Messages : 43
Date d'inscription : 2020-05-09

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by pixelcade 03/07/22, 07:44 pm

thanks, I did try that but am only seeing the events fire for game-start and game-end

Adding Support for Pixelcade Events11
pixelcade
pixelcade

Messages : 11
Date d'inscription : 2022-07-03

http://pixelcade.org

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by getupor 03/07/22, 08:02 pm

On Retrobat V5 (actually in Alpha version), you should get the same script as Batocera
Adding Support for Pixelcade 2022-037


Adding Support for Pixelcade Admin4
getupor
getupor
Admin

Messages : 1422
Date d'inscription : 2020-10-04

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by pixelcade 04/07/22, 04:49 am

V5 indeed has the additional script events, thanks for that

now just need to figure out how to parse the params that have a space in it

ie, Bermuda Triangle (USA).zip

right now that is showing up as 2 command line params when it's only 1 in reality, just need to see how to handle that correctly in windows batch or auto hot key
pixelcade
pixelcade

Messages : 11
Date d'inscription : 2022-07-03

http://pixelcade.org

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by pixelcade 04/07/22, 05:52 pm

so it looks like this will work out, I'm going to use AHK (Auto Hot Key) for the scripts, that way no dos window pop-ups and easier to work with. One request if possible to add " " around all incoming params as for example on game-start, the first param will show up like this for rom names with spaces

param #1: c:\RetroBat\roms\atari2600\3D
param #2: Tic-Tac-Toe
param #3: (USA).a26

where in this case the ROM is 3D Tic-Tac-Toe (USA).a26 and it should only be one param

If it's too much trouble, it's ok , I can do a work around, just cleaner if possible to include all params in quotes, thanks!
pixelcade
pixelcade

Messages : 11
Date d'inscription : 2022-07-03

http://pixelcade.org

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by f.caruso 04/07/22, 06:27 pm

It's already the case. ES sends parameters with double quotes "
I just tested it and it works just fine.


Adding Support for Pixelcade Admin4
f.caruso
f.caruso
Admin

Messages : 43
Date d'inscription : 2020-05-09

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by pixelcade 04/07/22, 06:31 pm

ah ok, something on my end then, I'll futz with it, thanks
pixelcade
pixelcade

Messages : 11
Date d'inscription : 2022-07-03

http://pixelcade.org

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by lolostang 04/07/22, 09:28 pm

Maybe it's possible to adapt this future script to just display a second marquee on a second screen without pixelcade ?
lolostang
lolostang

Messages : 10
Date d'inscription : 2020-06-16

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by pixelcade 04/07/22, 11:19 pm

certainly that could be done, the plumbing is there. For now, I'm going to focus on Pixelcade but anyone can take the work and extend it for this use case

initial code is here ==> https://github.com/alinke/pixelcade-retrobat

pixelcade
pixelcade

Messages : 11
Date d'inscription : 2022-07-03

http://pixelcade.org

getupor likes this post

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by pixelcade 06/07/22, 09:03 pm

@f.caruso pretty sure on the game-start event in V5, the first param is not in double quotes. I was able to work around it but if that is indeed the case and possible to add, that would make things cleaner.

I'm able to get the last param just fine which is the game title where those typically have spaces and no issues there, just the first param can't get all as one line for the roms with spaces in the names.

nonetheless, working version is here https://github.com/alinke/pixelcade-retrobat

thanks for all your help!
pixelcade
pixelcade

Messages : 11
Date d'inscription : 2022-07-03

http://pixelcade.org

getupor likes this post

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by f.caruso 07/07/22, 12:13 am

Every argument is quoted. See the code :

for (auto arg : { arg1, arg2, arg3 })
{
if (arg.empty())
break;

script += " \"" + arg + "\"";
}


Adding Support for Pixelcade Admin4
f.caruso
f.caruso
Admin

Messages : 43
Date d'inscription : 2020-05-09

getupor likes this post

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by pixelcade 07/07/22, 01:43 am

@f.caruso gotcha, well thanks for confirming that. Something weird on the windows side then I guess, the third arg comes across fine, just the first one. But I have a work around which I think will work, just need to test a bit more. As of now, have things working on both 4.x and 5.x, thanks again for your help!
pixelcade
pixelcade

Messages : 11
Date d'inscription : 2022-07-03

http://pixelcade.org

getupor likes this post

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by f.caruso 07/07/22, 09:05 am

No... Everything's just fine.

Adding Support for Pixelcade Sans_t10


Adding Support for Pixelcade Admin4
f.caruso
f.caruso
Admin

Messages : 43
Date d'inscription : 2020-05-09

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by pixelcade 07/07/22, 08:53 pm

perhaps something on my end, I did try that:

on this game: 3D Tic-Tac-Toe (USA).a26

@echo first %1 second %2 third %3 > al.txt

returns this:

first ""C:\RetroBat\roms\atari2600\3-D second Tic-Tac-Toe third (USA).a26""

Note though I'm on windows 7 right now (am away from my normal dev machine, I'll try win10 when back home) so maybe that has something to do with it?

Nonetheless, I have a work around and things seem to be working, albeit needs some more testing.

So V1 of the Pixelcade integration for RetroBat is released on http://pixelcade.org including an automated installer to make it easier for the user to get up and running

Feel free and would also be much appreciated if you can mention the Pixelcade integration on your channels and I will do the same on my end. Thanks again for all your quick help!

Git Repo is here https://github.com/alinke/pixelcade-retrobat

Adding Support for Pixelcade Instal12
Adding Support for Pixelcade Instal13
Adding Support for Pixelcade Instal14

Best,

Al
pixelcade
pixelcade

Messages : 11
Date d'inscription : 2022-07-03

http://pixelcade.org

Lorenzolamas and getupor like this post

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by Lorenzolamas 07/07/22, 09:13 pm

Good job! bounce Thumb up
Lorenzolamas
Lorenzolamas
Admin

Messages : 2650
Date d'inscription : 2019-07-28

pixelcade likes this post

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by lolostang 08/07/22, 01:35 pm

Is it possible to use it just for a "simple" second screen without pixelcade ?
lolostang
lolostang

Messages : 10
Date d'inscription : 2020-06-16

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by pixelcade 08/07/22, 05:10 pm

as of now, this is specific to Pixelcade but the source could pretty easily to modified to do that, I made this open source so anyone can make the mod https://github.com/alinke/pixelcade-retrobat
pixelcade
pixelcade

Messages : 11
Date d'inscription : 2022-07-03

http://pixelcade.org

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by sio03 27/09/22, 07:15 am

Is any good soul working on putting in the second marquee screen?
sio03
sio03

Messages : 38
Date d'inscription : 2021-09-15

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by wtstreetglow 24/10/23, 08:24 pm

sio03 wrote:Is any good soul working on putting in the second marquee screen?

Hello,

Were you able to come up with any sort of solution with this situation? Getting a second screen marquee working with retrobat?
wtstreetglow
wtstreetglow

Messages : 115
Date d'inscription : 2022-01-30

Back to top Go down

Adding Support for Pixelcade Empty Re: Adding Support for Pixelcade

Post by getupor 14/02/24, 11:08 am

Hello @pixelcade

Have you test with the RetroBat V6 version if it's still OK ?
As we don't have your material, we don't have the possibility to test


Adding Support for Pixelcade Admin4
getupor
getupor
Admin

Messages : 1422
Date d'inscription : 2020-10-04

Back to top Go down
